Quick Details
- Light Source: LED
- Item Type: Grille Lights
- LED Light Source: 2835
- Grid Shape: I
- Input Voltage(V): 100-240
- Lamp Power(W): 40
- Lamp Luminous Flux(lm): 3800-4200
- Lamp Luminous Efficiency(lm/w): 85
- CRI (Ra>): 80
- Color Temperature(CCT): cool / pure / warm white
- Working Temperature(℃): -20 – 40
- Working Lifetime(Hour): 50000
- Lamp Body Material: Stainless Steel
- Certification: CE, C-tick, SAA
- Base Type: led strips
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: WXD
- Model Number: WXLP-11
- Power Factor: 0.95
- THD: 13%
- Material: stretching aluminium + tempered glass
- Warranty: 3 years
- Lamp: led or fluorescent
- Type: square flat led panel ceiling lighting
Packaging & Delivery
| Packaging Details: |
standard export packing or meet your requirement |
|
Delivery Detail: |
15 days |
Specifications
square flat led panel ceiling lighting
built-in LED strips and opal diffuser to reduce glare
superior heat dissipation

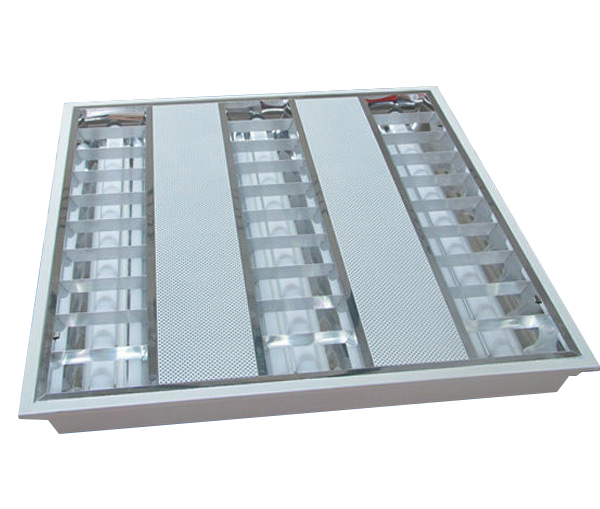

30W square flat led panel ceiling lighting, aluminum reflector
Feature:
1. Material: white powder coated cold-rolled steel sheet
2. aluminum louver and reflector

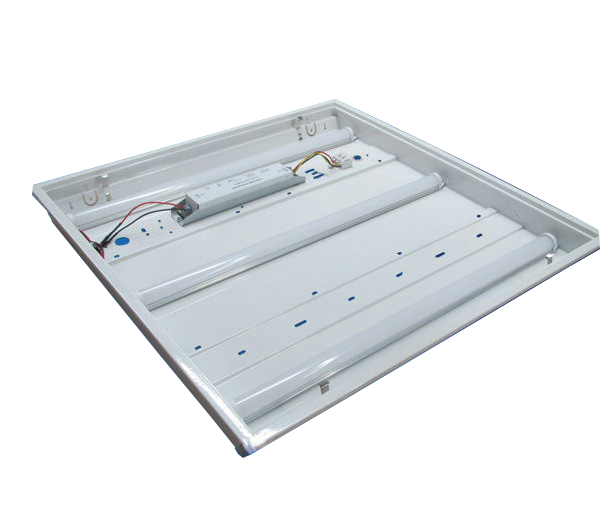

3. built-in led strips and driver, opal diffuser to reduce glare
4. superior heat dissipation
square flat led panel ceiling lighting
| Voltage: |
100-240V |
|
CCT: |
3000/4000/6000K |
|
CRI: |
80Ra |
|
Power Factor: |
0.95 |
|
THD: |
13% |
|
Housing Material: |
white powder coated cold-rolled steel sheet |
|
louver and reflector |
aluminum |
|
LED lifespan: |
50000h |
|
Warranty: |
3 years |
|
Model |
Power |
Lumens |
Fixture Dim. |
|
WXLP11-220(S) |
2x20W |
3800-4200 |
1198x298x50 |
|
WXLP11-320(S) |
3x20W |
5700-6300 |
1198x598x50 |
|
WXLP11-420(S) |
4x20W |
7600-8400 |
1198x598x50 |
|
WXLP11-210(S) |
2x10W |
1900-2100 |
598x298x50 |
|
WXLP11-310(S) |
3x10W |
2850-3150 |
598x598x50 |
|
WXLP11-410(S) |
4x10W |
3800-4200 |
598x598x50 |
